The laser cutting machine for metal tubes and profiles FIBER T offers outstanding precision and easy processing. It is compatible with various tube shapes (round, square, rectangular and others) and provides high speed and efficiency. The fully automatic double pneumatic chuck fixes the tubes firmly, preventing shifts and increasing accuracy.
| Laser power | 1 500 W – 6 000 W |
| Rotary axis for tube cutting | Diameter: 20-220mm, Length: 6000mm |
| Laser source | RAYCUS / MAX |
| Maximum running speed | 100 m/min |
| Positioning accuracy | 0.03 mm/m |
| Repeated positioning accuracy | ±0.02 mm/m |
| Laser cutting head | RAYTOOLS / BOCI |
| Laser cutting system | TubePro / TubesT / FSCut |
InquiryGATOR FIBER K Catalog
Standard equipment
- Fiber laser source RAYCUS / MAX
- Laser cutting head RAYTOOLS / BOCI
- CAD/CAM nesting software
- Industrial computer
- Servo drivers and motors Yaskawa
- Industrial chiller
- Automatic lubrication system
- Filter
Optional equipment
- Rotational module for cutting pipes and profiles with a diameter of 350 mm
- Automatic material loading system
CONSTRUCTION
The massive body of the machine reduces vibrations and increases durability. The Fiber T frames are reinforced, welded, and heat-treated to prevent deformation. Precise machining with a single reference point through 5-axis CNC machines ensures axis alignment, providing high accuracy and long operational life.
DRIVE SYSTEM
The X and Y axes are driven by a rack and pinion from YYC - Taiwan. The Z axis is driven by a TBI ball screw assembly. They are known for their high quality, precision, and long service life.
SERVO DRIVES & MOTORS
Yaskawa servo motors and drivers offer high precision, reliability, and speed. They are used to drive the axes and ensure fast response even during intensive operation.
FILTER
Welldone filters effectively remove smoke and dust during fiber laser cutting, improving the working environment. Their high-efficiency elements extend the lifespan of the equipment. The compact design allows easy installation on various machines.
CHILLER
The chiller S&A, CWFL is an important component in fiber laser cutting machines, as it ensures stable operation of the laser source and optics by maintaining the temperature within optimal limits.
STABILIZER
Voltage stabilizers ensure stable operation of fiber laser machines during power fluctuations. They protect the electronics and enhance system reliability. Ideal for environments with unstable voltage.
GAS REGULATOR
Gas regulators in fiber laser cutting machines play a key role in controlling the cutting process. They manage the pressure and flow rate of the gases used — most commonly oxygen, nitrogen, or air — depending on the type and thickness of the material.
RAYTOOLS BM110 Sharp nose
The Raytools BM110 cutting head with a sharp nose is designed for fiber laser machines with power from 1,500 W to 3,000 W, providing precise cutting. It features automatic focusing within a range of -12 mm to +10 mm with an accuracy of up to 0.05 mm, reducing human intervention and improving cutting efficiency.
RAYTOOLS BM06K Sharp nose
The Raytools BM06K cutting head with a sharp nozzle is designed for fiber lasers up to 4 000 W, providing precise cutting of sheets, tubes, and profiles. It features an intelligent autofocus system and efficient cooling to protect the optics.
BOCI BLT Sharp nose
The BOCI BLT421 cutting head with a sharp tip is designed for fiber laser machines up to 6000 W and is an excellent solution for cutting tubes and profiles.
It is equipped with intelligent auto-focusing, ensuring precise cutting across different material thicknesses.
The QBH and EOC interfaces provide flexibility for integration into modern laser solutions.
It is equipped with intelligent auto-focusing, ensuring precise cutting across different material thicknesses.
The QBH and EOC interfaces provide flexibility for integration into modern laser solutions.
RAYCUS
Raycus fiber lasers are powerful industrial resonators for metal cutting, offering high efficiency and low operating costs. Intelligent monitoring ensures reliability and long service life, while the precise beam delivers clean, high-quality cuts.
- Photoelectric efficiency up to 30%
- High beam quality
- Flexible frequency modulation
- Intelligent monitoring
MAX Photonics
MAX Photonics offers a powerful and stable resonator in a compact design – ideal for high-intensity industrial applications. Suitable for cutting, while ensuring low maintenance costs and long-term trouble-free operation.
- Power up to 40,000 W
- Compact and durable
- Proven reliability
- Fast and stable output

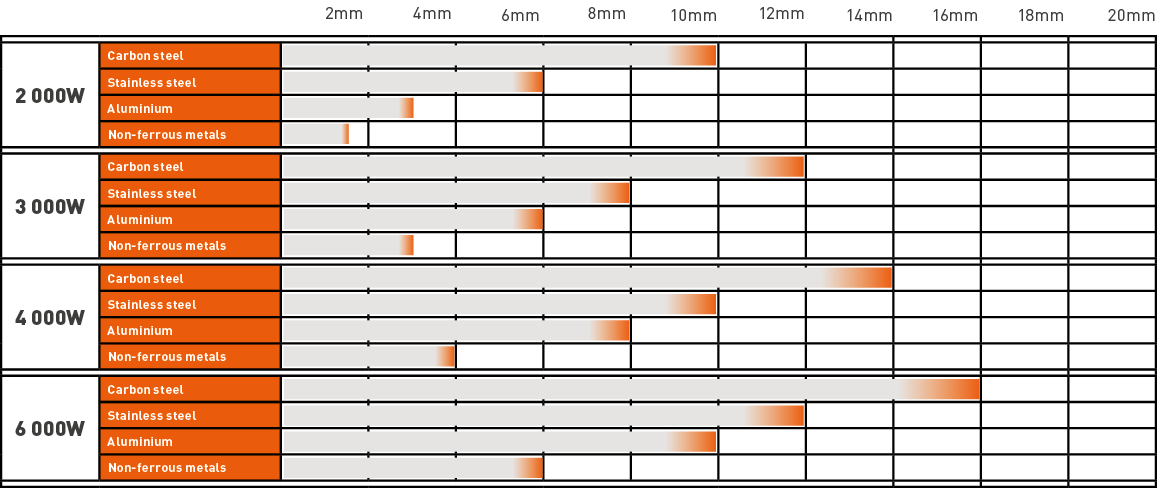

Note: The data in this table is for reference only!
Varying material quality, auxiliary gases, focal length, workpiece type, etc. will
affect cutting speed and should be adjusted to suit conditions.
When cutting materials with high reflectivity, such as copper and aluminum,
appropriate adjustments must be made to optimize the cutting process.
